Roof Top Split & Package Systems

2-5 Ton Ceiling and Roof Top, Split and Package Systems

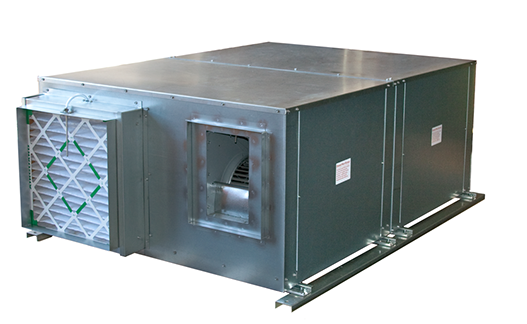

The Compu-Aire Maxi-Kool is a self-contained unit with a ceiling/roof mounted closed loop system. It is available in an air, water, glycol, or chilled water configuration. A high efficiency coil provides maximum air draw through to meet space capacity

A thermally insulated galvanized steel pan is provided for the evaporator coil to prevent any water from reaching the floor. Fully insulated cabinet and side access panels made for easy servicing.

Maxi-Kool Systems are well equipped with the advance System 2000 Microprocessor Controls such as:

  • Dual display, digitally operated, remote controller for precise temperature and humidity control
  • 16 character LCD display with six push button switches
  • Displays current room temperature, unit status, and alarm messages
  • 5 year battery backup for volatile memory

Belt Drive Fan Assembly Highlights:

  • Belt driven motors for field adjustment to match external static pressure requirement
  • The blowers are DWDI, centrifugal with forward curved blades and both are dynamically and statically balanced

Scroll Compressor Highlights:

  • High efficiency scroll compressor with built in thermal overload protection, pressure relief valve, and current overload protection.

Other Highlights:

  • Refrigerant Circuits
  • Thermal expansion valve
  • Filter drier
  • Sight glass
  • High and low pressure switch
  • Schrader fittings
  • Electric Reheat
  • The electric heating coil is a low watt density stainless steel fin tubular construction
  • Disposable Cylinder Humidifier
  • Prewired, pre-piped, and maintenance free, this is a steam generating humidifier.
  • The humidifier is equipped with disposable cylinder.
  • Water Regulating Valve
  • (Water/Glycol Cooled Units Only)
  • 2way, 150 psig head pressure actuated valve
  • Water Cooled Condenser
  • (Water Cooled Units Only)
  • Heavy duty, counter flow coaxial condensers
  • Chilled Water Valve
  • (Chilled Water Units Only)
  • 2way, 2 positions chilled water valve
